Adding VM Notes and Custom Attributes with vRA8


First I’ll add a few new inputs to the cloud template in Cloud Assembly:

    type: string
    title: Description
    description: Server function/purpose
    default: Testing 12345
    type: string
    title: Point of Contact Name
    default: Phil
    type: string
    title: Ticket/Request Number
    default: 5497358

I’ll also need to add these to the resources section of the template so that they will get passed along with the deployment properties:

    type: Cloud.vSphere.Machine
      poc: '${input.poc_name}'
      ticket: '${input.ticket}'
      description: '${input.description}'

vRO Workflow

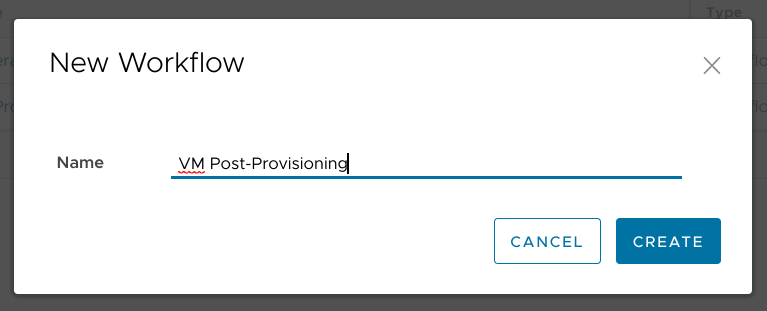

Okay, so we’ve got the information to pass on to vCenter. Now I need to create a new workflow in vRO that will actually do that (after telling vRO how to connect to the vCenter, don’t forget this step!). I’ll want to call this after the VM has been provisioned, so I’ll call the workflow “VM Post-Provisioning”.

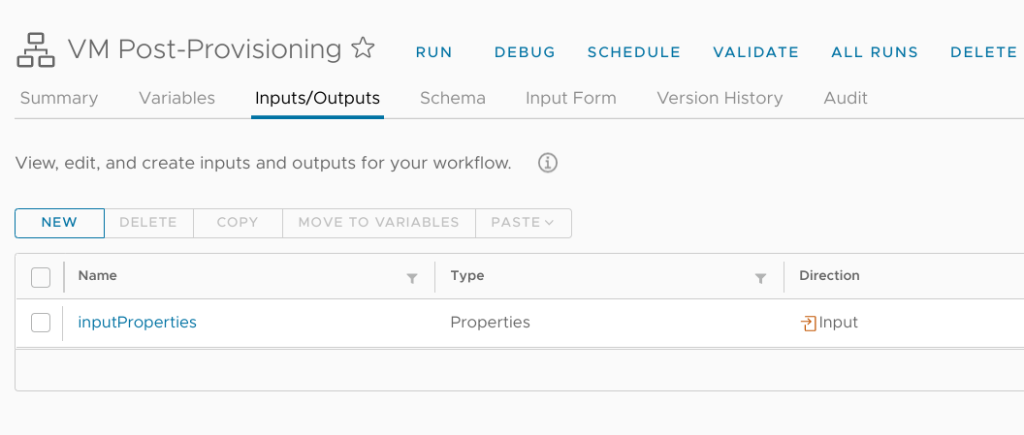

The workflow will have a single input from vRA, inputProperties of type Properties

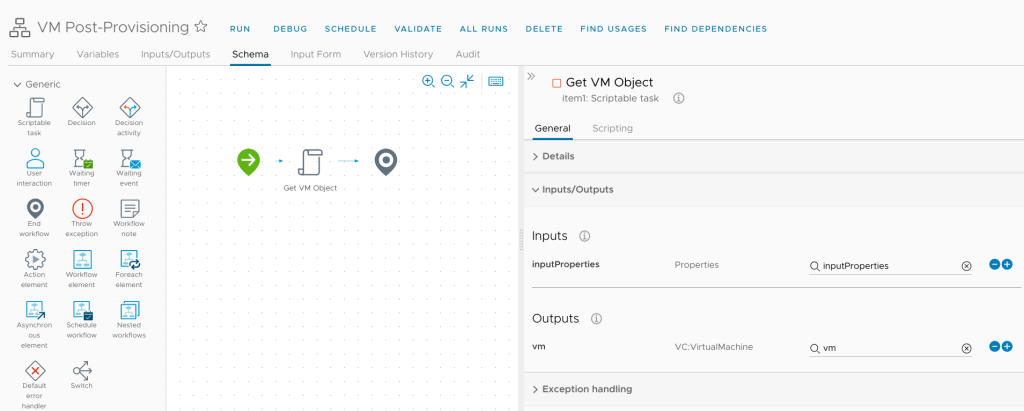

The first thing this workflow needs to do is parse inputProperties (Properties) to get the name of the VM, and it will then use that information to query vCenter and grab the corresponding VM object. So I’ll add a scriptable task item to the workflow canvas and call it Get VM Object. It will take inputProperties (Properties) as its sole input, and output a new variable called vm of type VC:VirtualMachine.

This is the script for this task:

// JavaScript: Get VM Object
//    Inputs: inputProperties (Properties)
//    Outputs: vm (VC:VirtualMachine)

var name = inputProperties.resourceNames[0]

var vms = VcPlugin.getAllVirtualMachines(null, name)
System.log("Found VM object: " + vms[0])
vm = vms[0]

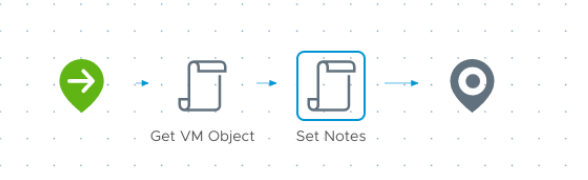

I’ll add another scriptable task item to the workflow to actually apply the notes to the VM – I’ll call it Set Notes, and it will take both vm (VC:VirtualMachine) and inputProperties (Properties) as its inputs.

The first part of the script creates a new VM config spec, inserts the description into the spec, and then reconfigures the selected VM with the new spec.

The second part uses a built-in action to set the Point of Contact and Ticket custom attributes accordingly.

// Javascript: Set Notes
//    Inputs: vm (VC:VirtualMachine), inputProperties (Properties)
//    Outputs: None

var notes = inputProperties.customProperties.description
var poc = inputProperties.customProperties.poc
var ticket = inputProperties.customProperties.ticket

var spec = new VcVirtualMachineConfigSpec()
spec.annotation = notes

System.getModule("").setOrCreateCustomField(vm,"Point of Contact", poc)
System.getModule("").setOrCreateCustomField(vm,"Ticket", ticket)

Extensibility subscription

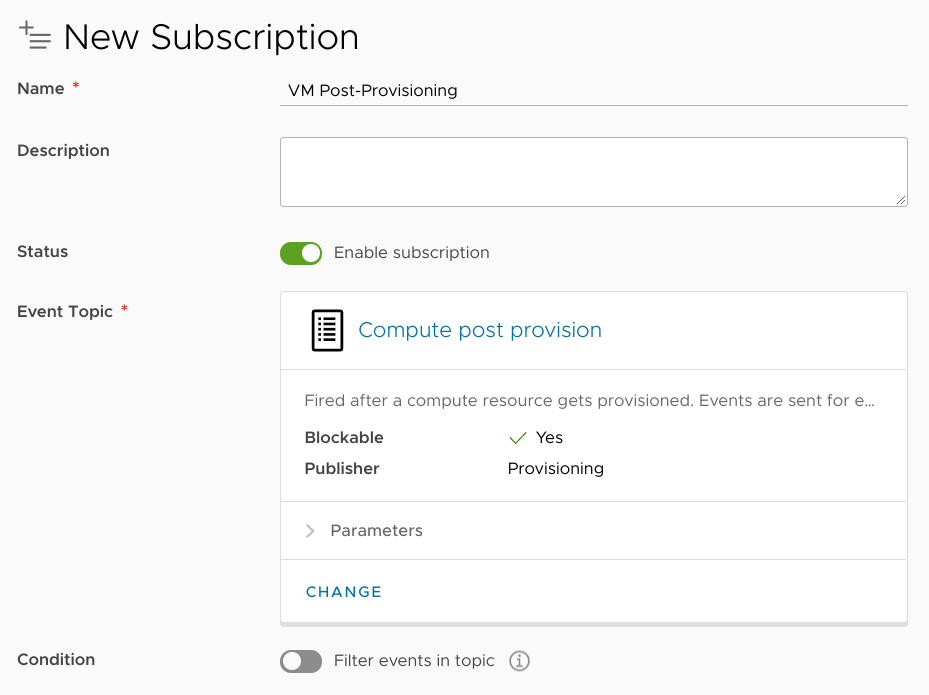

Now I need to return to Cloud Assembly and create a new extensibility subscription that will call this new workflow at the appropriate time. I’ll call it “VM Post-Provisioning” and attach it to the “Compute Post Provision” topic.

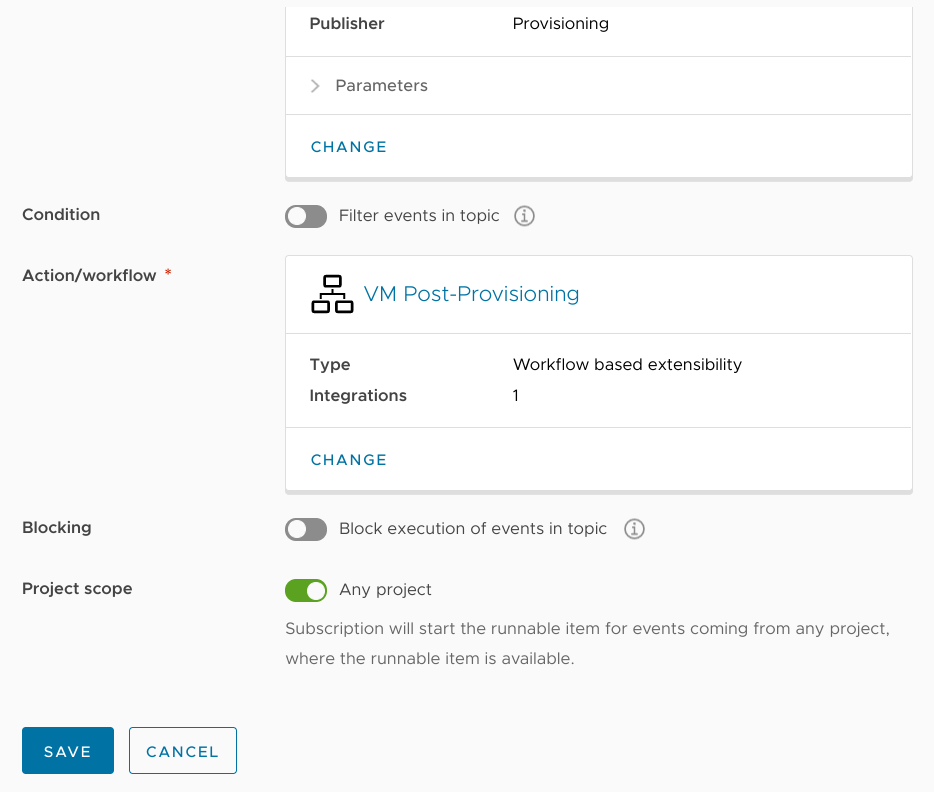

And then I’ll link it to my new workflow:

Then start testing
